10.14 Android GPS初涉

时间:05-31来源:作者:点击数:56

本节引言:

说到GPS这个名词,相信大家都不陌生,GPS全球定位技术嘛,嗯,Android中定位的方式 一般有这四种:GPS定位,WIFI定准,基站定位,AGPS定位(基站+GPS);

本系列教程只讲解GPS定位的基本使用!GPS是通过与卫星交互来获取设备当前的经纬度,准确 度较高,但也有一些缺点,最大的缺点就是:室内几乎无法使用...需要收到4颗卫星或以上 信号才能保证GPS的准确定位!但是假如你是在室外,无网络的情况,GPS还是可以用的!

本节我们就来探讨下Android中的GPS的基本用法~


1.定位相关的一些API


1)LocationManager

官方API文档:LocationManager

这玩意是系统服务来的,不能直接new,需要:

  • LocationManager lm = (LocationManager)getSystemService(Context.LOCATION_SERVICE);

另外用GPS定位别忘了加权限:

  • <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION"/>

好的,获得了LocationManager对象后,我们可以调用下面这些常用的方法:

  • addGpsStatusListener(GpsStatus.Listener listener):添加一个GPS状态监听器
  • addProximityAlert(double latitude, double longitude, float radius, long expiration, PendingIntent intent): 添加一个临界警告
  • getAllProviders():获取所有的LocationProvider列表
  • getBestProvider(Criteria criteria, boolean enabledOnly):根据指定条件返回最优LocationProvider
  • getGpsStatus(GpsStatus status):获取GPS状态
  • getLastKnownLocation(String provider):根据LocationProvider获得最近一次已知的Location
  • getProvider(String name):根据名称来获得LocationProvider
  • getProviders(boolean enabledOnly):获取所有可用的LocationProvider
  • getProviders(Criteria criteria, boolean enabledOnly):根据指定条件获取满足条件的所有LocationProvider
  • isProviderEnabled(String provider):判断指定名称的LocationProvider是否可用
  • removeGpsStatusListener(GpsStatus.Listener listener):删除GPS状态监听器
  • removeProximityAlert(PendingIntent intent):删除一个临近警告
  • requestLocationUpdates(long minTime, float minDistance, Criteria criteria, PendingIntent intent): 通过制定的LocationProvider周期性地获取定位信息,并通过Intent启动相应的组件
  • requestLocationUpdates(String provider, long minTime, float minDistance, LocationListener listener): 通过制定的LocationProvider周期性地获取定位信息,并触发listener所对应的触发器

2)LocationProvider(定位提供者)

官方API文档:LocationProvider

这比是GPS定位组件的抽象表示,调用下述方法可以获取该定位组件的相关信息!

常用的方法如下:

  • getAccuracy():返回LocationProvider精度
  • getName():返回LocationProvider名称
  • getPowerRequirement():获取LocationProvider的电源需求
  • hasMonetaryCost():返回该LocationProvider是收费还是免费的
  • meetsCriteria(Criteria criteria):判断LocationProvider是否满足Criteria条件
  • requiresCell():判断LocationProvider是否需要访问网络基站
  • requiresNetwork():判断LocationProvider是否需要访问网络数据
  • requiresSatellite():判断LocationProvider是否需要访问基于卫星的定位系统
  • supportsAltitude():判断LocationProvider是否支持高度信息
  • supportsBearing():判断LocationProvider是否支持方向信息
  • supportsSpeed():判断是LocationProvider否支持速度信息

3)Location(位置信息)

官方API文档:Location

位置信息的抽象类,我们可以调用下述方法获取相关的定位信息!

常用方法如下:

  • float getAccuracy():获得定位信息的精度
  • double getAltitude():获得定位信息的高度
  • float getBearing():获得定位信息的方向
  • double getLatitude():获得定位信息的纬度
  • double getLongitude():获得定位信息的精度
  • String getProvider():获得提供该定位信息的LocationProvider
  • float getSpeed():获得定位信息的速度
  • boolean hasAccuracy():判断该定位信息是否含有精度信息

4)Criteria(过滤条件)

官方API文档:Criteria

获取LocationProvider时,可以设置过滤条件,就是通过这个类来设置相关条件的~

常用方法如下:

  • setAccuracy(int accuracy):设置对的精度要求
  • setAltitudeRequired(boolean altitudeRequired):设置是否要求LocationProvider能提供高度的信息
  • setBearingRequired(boolean bearingRequired):设置是否要LocationProvider求能提供方向信息
  • setCostAllowed(boolean costAllowed):设置是否要求LocationProvider能提供方向信息
  • setPowerRequirement(int level):设置要求LocationProvider的耗电量
  • setSpeedRequired(boolean speedRequired):设置是否要求LocationProvider能提供速度信息

2.获取LocationProvider的例子

运行效果图

由图可以看到,当前可用的LocationProvider有三个,分别是:

  • passive:被动提供,由其他程序提供
  • gps:通过GPS获取定位信息
  • network:通过网络获取定位信息

实现代码

布局文件:activity_main.xml

  • <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  • android:layout_width="match_parent"
  • android:layout_height="match_parent"
  • android:orientation="vertical">
  • <Button
  • android:id="@+id/btn_one"
  • android:layout_width="wrap_content"
  • android:layout_height="wrap_content"
  • android:text="获得系统所有的LocationProvider" />
  • <Button
  • android:id="@+id/btn_two"
  • android:layout_width="wrap_content"
  • android:layout_height="wrap_content"
  • android:text="根据条件获取LocationProvider" />
  • <Button
  • android:id="@+id/btn_three"
  • android:layout_width="wrap_content"
  • android:layout_height="wrap_content"
  • android:text="获取指定的LocationProvider" />
  • <TextView
  • android:id="@+id/tv_result"
  • android:layout_width="match_parent"
  • android:layout_height="match_parent"
  • android:layout_margin="10dp"
  • android:background="#81BB4D"
  • android:padding="5dp"
  • android:textColor="#FFFFFF"
  • android:textSize="20sp"
  • android:textStyle="bold" />
  • </LinearLayout>

MainActivity.java:

  • public class MainActivity extends AppCompatActivity implements View.OnClickListener {
  • private Button btn_one;
  • private Button btn_two;
  • private Button btn_three;
  • private TextView tv_result;
  • private LocationManager lm;
  • private List<String> pNames = new ArrayList<String>(); // 存放LocationProvider名称的集合
  • @Override
  • protected void onCreate(Bundle savedInstanceState) {
  • super.onCreate(savedInstanceState);
  • setContentView(R.layout.activity_main);
  • lm = (LocationManager) getSystemService(Context.LOCATION_SERVICE);
  • bindViews();
  • }
  • private void bindViews() {
  • btn_one = (Button) findViewById(R.id.btn_one);
  • btn_two = (Button) findViewById(R.id.btn_two);
  • btn_three = (Button) findViewById(R.id.btn_three);
  • tv_result = (TextView) findViewById(R.id.tv_result);
  • btn_one.setOnClickListener(this);
  • btn_two.setOnClickListener(this);
  • btn_three.setOnClickListener(this);
  • }
  • @Override
  • public void onClick(View v) {
  • switch (v.getId()) {
  • case R.id.btn_one:
  • pNames.clear();
  • pNames = lm.getAllProviders();
  • tv_result.setText(getProvider());
  • break;
  • case R.id.btn_two:
  • pNames.clear();
  • Criteria criteria = new Criteria();
  • criteria.setCostAllowed(false); //免费
  • criteria.setAltitudeRequired(true); //能够提供高度信息
  • criteria.setBearingRequired(true); //能够提供方向信息
  • pNames = lm.getProviders(criteria, true);
  • tv_result.setText(getProvider());
  • break;
  • case R.id.btn_three:
  • pNames.clear();
  • pNames.add(lm.getProvider(LocationManager.GPS_PROVIDER).getName()); //指定名称
  • tv_result.setText(getProvider());
  • break;
  • }
  • }
  • //遍历数组返回字符串的方法
  • private String getProvider(){
  • StringBuilder sb = new StringBuilder();
  • for (String s : pNames) {
  • sb.append(s + "\n");
  • }
  • return sb.toString();
  • }
  • }

3.判断GPS是否打开以及打开GPS的两种方式

在我们使用GPS定位前的第一件事应该是去判断GPS是否已经打开或可用,没打开的话我们需要去 打开GPS才能完成定位!这里不考虑AGPS的情况~


1)判断GPS是否可用

  • private boolean isGpsAble(LocationManager lm){
  • return lm.isProviderEnabled(android.location.LocationManager.GPS_PROVIDER)?true:false;
  • }

2)检测到GPS未打开,打开GPS

方法一:强制打开GPS,Android 5.0后无用....

  • //强制帮用户打开GPS 5.0以前可用
  • private void openGPS(Context context){
  • Intent gpsIntent = new Intent();
  • gpsIntent.setClassName("com.android.settings", "com.android.settings.widget.SettingsAppWidgetProvider");
  • gpsIntent.addCategory("android.intent.category.ALTERNATIVE");
  • gpsIntent.setData(Uri.parse("custom:3"));
  • try {
  • PendingIntent.getBroadcast(LocationActivity.this, 0, gpsIntent, 0).send();
  • } catch (PendingIntent.CanceledException e) {
  • e.printStackTrace();
  • }
  • }

方法二:打开GPS位置信息设置页面,让用户自行打开

  • //打开位置信息设置页面让用户自己设置
  • private void openGPS2(){
  • Intent intent = new Intent(Settings.ACTION_LOCATION_SOURCE_SETTINGS);
  • startActivityForResult(intent,0);
  • }

4.动态获取位置信息

这个非常简单,调用requestLocationUpdates方法设置一个LocationListener定时检测位置而已!

示例代码如下:

布局:activity_location.xml

  • <?xml version="1.0" encoding="utf-8"?>
  • <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  • android:layout_width="match_parent"
  • android:layout_height="match_parent"
  • android:orientation="vertical">
  • <TextView
  • android:id="@+id/tv_show"
  • android:layout_width="match_parent"
  • android:layout_height="match_parent"
  • android:padding="5dp"
  • android:textSize="20sp"
  • android:textStyle="bold" />
  • </LinearLayout>

LocationActivity.java:

  • /**
  • * Created by Jay on 2015/11/20 0020.
  • */
  • public class LocationActivity extends AppCompatActivity {
  • private LocationManager lm;
  • private TextView tv_show;
  • @Override
  • public void onCreate(Bundle savedInstanceState) {
  • super.onCreate(savedInstanceState);
  • setContentView(R.layout.activity_location);
  • tv_show = (TextView) findViewById(R.id.tv_show);
  • lm = (LocationManager) getSystemService(Context.LOCATION_SERVICE);
  • if (!isGpsAble(lm)) {
  • Toast.makeText(LocationActivity.this, "请打开GPS~", Toast.LENGTH_SHORT).show();
  • openGPS2();
  • }
  • //从GPS获取最近的定位信息
  • Location lc = lm.getLastKnownLocation(LocationManager.GPS_PROVIDER);
  • updateShow(lc);
  • //设置间隔两秒获得一次GPS定位信息
  • lm.requestLocationUpdates(LocationManager.GPS_PROVIDER, 2000, 8, new LocationListener() {
  • @Override
  • public void onLocationChanged(Location location) {
  • // 当GPS定位信息发生改变时,更新定位
  • updateShow(location);
  • }
  • @Override
  • public void onStatusChanged(String provider, int status, Bundle extras) {
  • }
  • @Override
  • public void onProviderEnabled(String provider) {
  • // 当GPS LocationProvider可用时,更新定位
  • updateShow(lm.getLastKnownLocation(provider));
  • }
  • @Override
  • public void onProviderDisabled(String provider) {
  • updateShow(null);
  • }
  • });
  • }
  • //定义一个更新显示的方法
  • private void updateShow(Location location) {
  • if (location != null) {
  • StringBuilder sb = new StringBuilder();
  • sb.append("当前的位置信息:\n");
  • sb.append("精度:" + location.getLongitude() + "\n");
  • sb.append("纬度:" + location.getLatitude() + "\n");
  • sb.append("高度:" + location.getAltitude() + "\n");
  • sb.append("速度:" + location.getSpeed() + "\n");
  • sb.append("方向:" + location.getBearing() + "\n");
  • sb.append("定位精度:" + location.getAccuracy() + "\n");
  • tv_show.setText(sb.toString());
  • } else tv_show.setText("");
  • }
  • private boolean isGpsAble(LocationManager lm) {
  • return lm.isProviderEnabled(android.location.LocationManager.GPS_PROVIDER) ? true : false;
  • }
  • //打开设置页面让用户自己设置
  • private void openGPS2() {
  • Intent intent = new Intent(Settings.ACTION_LOCATION_SOURCE_SETTINGS);
  • startActivityForResult(intent, 0);
  • }
  • }

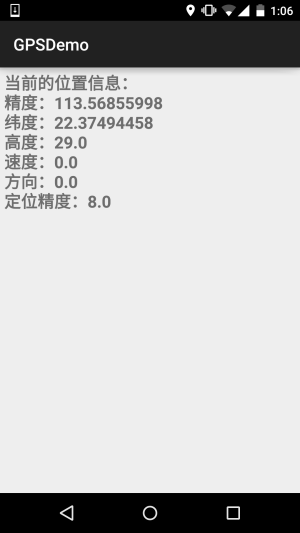

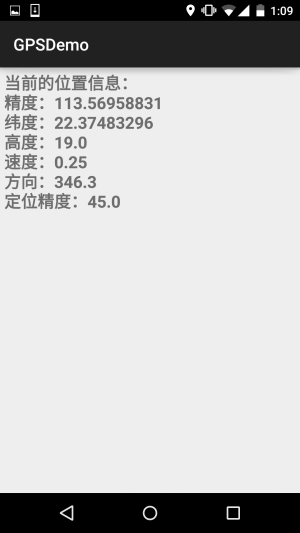

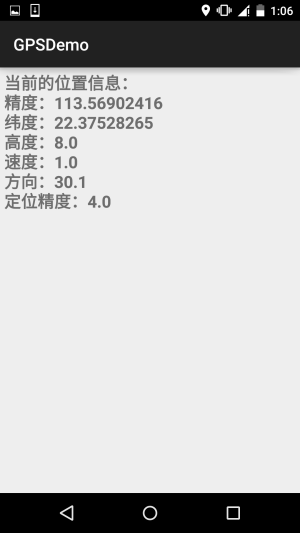

好的,非常简单,因为gps需要在室外才能用,于是趁着这个机会小跑出去便利店买了杯奶茶, 顺道截下图~





requestLocationUpdates (String provider, long minTime, float minDistance, LocationListener listener)

当时间超过minTime(单位:毫秒),或者位置移动超过minDistance(单位:米),就会调用listener中的方法更新GPS信息,建议这个minTime不小于60000,即1分钟,这样会更加高效而且省电,加入你需要尽可能 实时地更新GPS,可以将minTime和minDistance设置为0

对了,别忘了,你还需要一枚权限:

  • <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />

5.临近警告(地理围栏)

嗯,就是固定一个点,当手机与该点的距离少于指定范围时,可以触发对应的处理! 有点像地理围栏...我们可以调用LocationManager的addProximityAlert方法添加临近警告! 完整方法如下:

addProximityAlert(double latitude,double longitude,float radius,long expiration,PendingIntent intent)

属性说明:

  • latitude:指定固定点的经度
  • longitude:指定固定点的纬度
  • radius:指定半径长度
  • expiration:指定经过多少毫秒后该临近警告就会过期失效,-1表示永不过期
  • intent:该参数指定临近该固定点时触发该intent对应的组件

示例代码如下

ProximityActivity.java

  • /**
  • * Created by Jay on 2015/11/21 0021.
  • */
  • public class ProximityActivity extends AppCompatActivity {
  • private LocationManager lm;
  • @Override
  • public void onCreate(Bundle savedInstanceState) {
  • super.onCreate(savedInstanceState);
  • setContentView(R.layout.activity_proximity);
  • lm = (LocationManager) getSystemService(Context.LOCATION_SERVICE);
  • //定义固定点的经纬度
  • double longitude = 113.56843;
  • double latitude = 22.374937;
  • float radius = 10; //定义半径,米
  • Intent intent = new Intent(this, ProximityReceiver.class);
  • PendingIntent pi = PendingIntent.getBroadcast(this, -1, intent, 0);
  • lm.addProximityAlert(latitude, longitude, radius, -1, pi);
  • }
  • }

还需要注册一个广播接收者:ProximityReceiver.java

  • /**
  • * Created by Jay on 2015/11/21 0021.
  • */
  • public class ProximityReceiver extends BroadcastReceiver{
  • @Override
  • public void onReceive(Context context, Intent intent) {
  • boolean isEnter = intent.getBooleanExtra( LocationManager.KEY_PROXIMITY_ENTERING, false);
  • if(isEnter) Toast.makeText(context, "你已到达南软B1栋附近", Toast.LENGTH_LONG).show();
  • else Toast.makeText(context, "你已离开南软B1栋附近", Toast.LENGTH_LONG).show();
  • }
  • }

别忘了注册:

  • <receiver android:name=".ProximityReceiver"/>

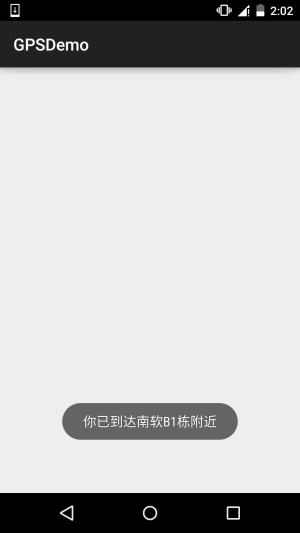

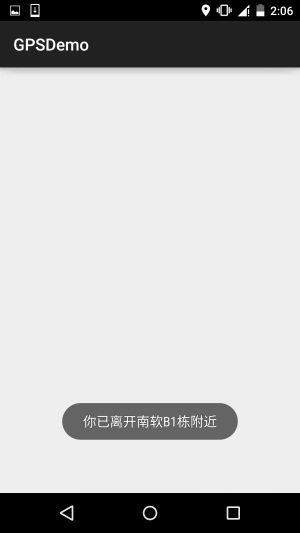

运行效果图

PS:好吧,设置了10m,结果我从B1走到D1那边,不止10m了吧...还刚好下雨




6.本节示例代码下载

GPSDemo.zip


本节小结:

好的,本节给大家介绍了Android中GPS定位的一些基本用法,非常简单,内容部分参考的 李刚老师的《Android疯狂讲义》,只是对例子进行了一些修改以及进行了可用性的测试! 本节就到这里,谢谢~

方便获取更多学习、工作、生活信息请关注本站微信公众号城东书院 微信服务号城东书院 微信订阅号
推荐内容
相关内容
栏目更新
栏目热门
